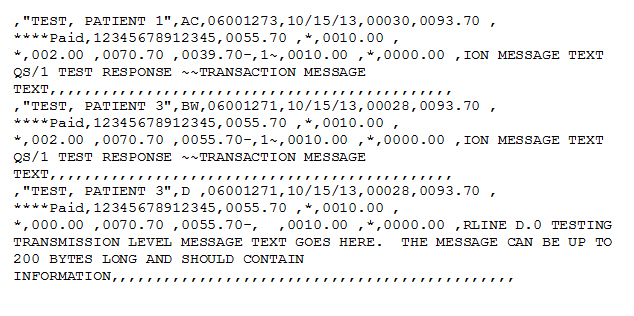

The ECS Report to ASCII File option exports data from the ECS File to an ASCII File on the hard drive. This data may be imported to spreadsheet or word processing software. Sample Report
The process of generating a report in NRx involves a set of steps referred to as Report Logic. These steps include selecting data, sorting the selected data in a certain order and then printing the report. Review Reports Overview for details on these steps.
To run this report:
1. Access NRx.

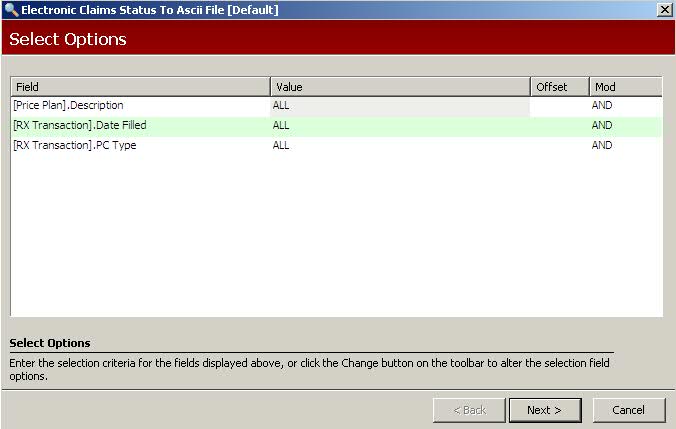

2. Click Reports. Select Third Party. Click ECS Report to ASCII File. Select Options display:
3. Complete the Select Options and click Next. Sort Options display:

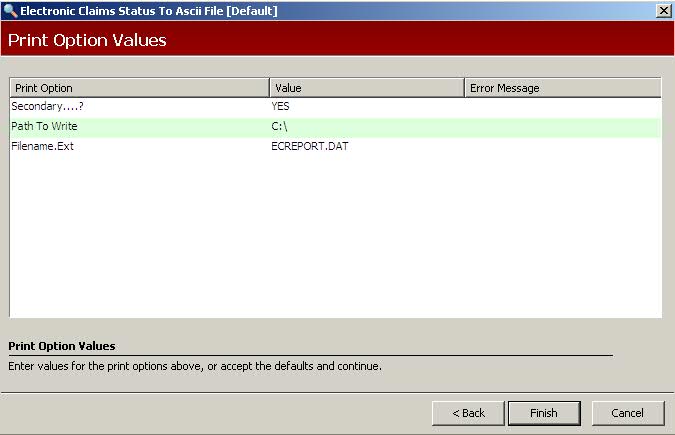

4. Complete the Sort Options and click Next. Print Options display:
5. Use the following definitions to complete the Print Options:
Secondary: Type YES to save the report on the Client. Type NO to save the report on the Server.
Path to Write: Type the drive where the report will be stored. For example, C:\.
Filename.Ext: Type the file name with the extension. For example, ECS2011.dat.
For example, the file name and path will read as C:\ECS2011.dat.
6. Verify entries are correct. Click Finish. The report prints.
